Small PCD Milling Cutters / PDC Oilfield Diamond Drill Tips ISO Approved

Brand Name : UBT

Model Number : PDC tips

Certification : ISO

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union,paypal

Supply Ability : 1000000/month

Delivery Time : 5~20working days

Packaging Details : in plastic box then in paper carton

Name : PDC Mining Drill Bit Cutter / PDC Oilfield Diamond Drill Tips

Application : Oil exploration, mining and engineering construction

Usage : drilling tools

Shape : Semi ballistic ,conical ,flat,Spherical

Features : Hight effiency ,high wear resistant,high impact toughness

Working condition : coal mining,well driling,oil filed drilling,Rock drilling

Size : 1304,1308,1313,1613,1616,1913,1916...

Use tools : PDC bit, roller bit, DTH bit, shield tool...

Composition : Tungsten carbide base +polycrystalline diamond layer

Contact Now

PDC Mining Drill Bit Cutter / PDC Oilfield Diamond Drill Tips

PDC is Polycrystalline Diamond Compact.PDC cutters made of tungsten carbide base and polycrystalline diamond powder in high temperature and high pressture condition.

PDC drill tips have high impact toughness like tungsten carbide that aslo have high wear resistant and thermal conductivity of polycrystalline diamond .It widely used to oil exploration, mining and engineering construction .Making PDC bit, roller bit, DTH bit, shield tool and so on.

The advantages of PDC cutter working:

1.Drilling life is long.It will has 5~10times compared the orninary tungsten carbide buttons

2.Moving speed is fast,which greatly improves the drilling efficiency and saves the drilling cost.

3. Having a good gauge effect, and the high wear resistance of the product ensures a constant pore size, improves the quality of the hole wall, and also protects the outer cylinder of the impactor.

Common PDC cutter buttons's size we make:

Diameter

(mm)

Height

(mm)

Diamond thickness

(mm)

Button shape

Tungsten carbide base

￠8--￠25±0.02

H4.5-34±0.1

1.5~2.0±0.2

①Spherical

②Conical

③Semi ballistic

④Flat

①Chamfer in the flat bottom

②Arc bottom

We aslo can make the size and shape according to clients' requirements

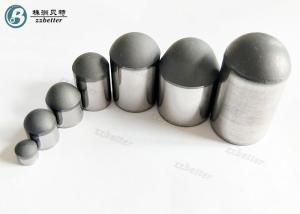

PDC cutters product display:

Small PCD Milling Cutters / PDC Oilfield Diamond Drill Tips ISO Approved
